Stainless Steel Track

SKU: 397059
Type
Description

Matthews manufactures and supplies the industry with stainless steel Dolly Track. All Matthews track now has black cross members.

Matthews curved tracks are available to complete 10' and 20' diameter circles. Be advised that most dollies will not navigate the 10' circle without the addition of a multi-wheeled device such as the Matthews Centipede #395200.

Four pieces of 90-degree curve track are needed to complete a circle. Eight pieces are required for 20' diameter circle. All Matthews Dolly Track is rated to a maximum payload of 1200 Lbs (545kg) at the industry standard of 24.5" center to center track width.

Please note $15.00 Packaging for 8' Straight Track, $20.00 Packaging for 10' Straight Track. To insure against damage to the product during transit, all Curve Dolly Track must be crated prior to shipment. Please allow 2 working days from receipt of order for crating. Matthews will not be responsible for track shipped without crating.

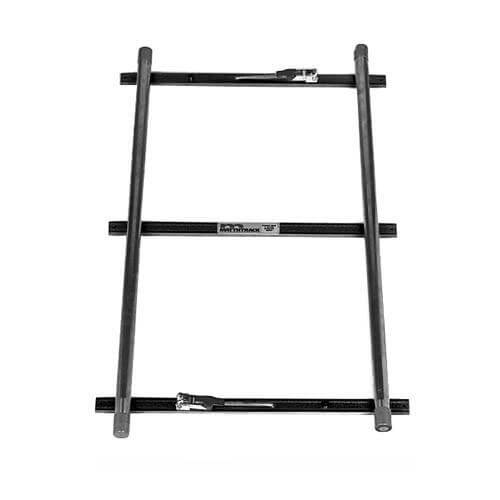

Stainless Steel Track Straight 4 Foot Section
PN 397070 - Weight: 22.5lbs

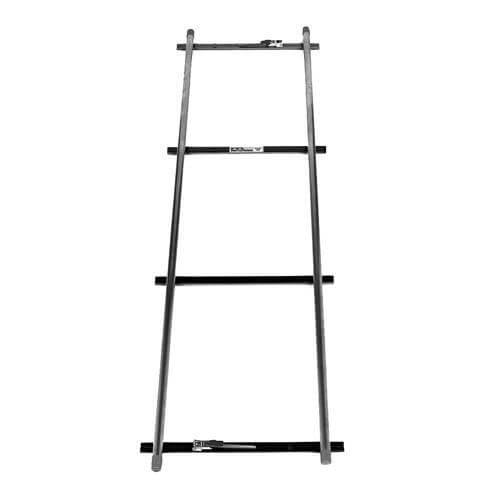

Stainless Steel Track Straight 8 Foot Section
PN 397065 - Weight: 36lbs

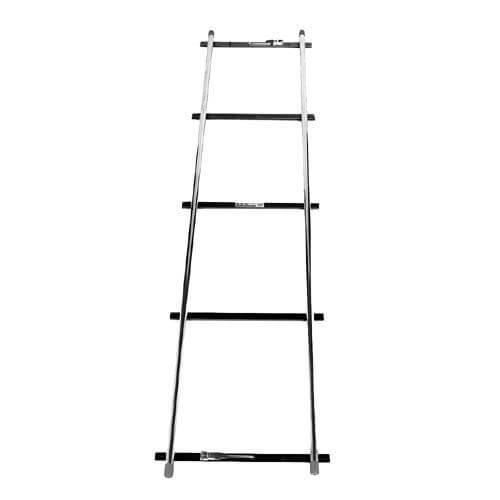

Stainless Steel Track Straight 10 Foot Section
PN 397067 - Weight: 40lbs

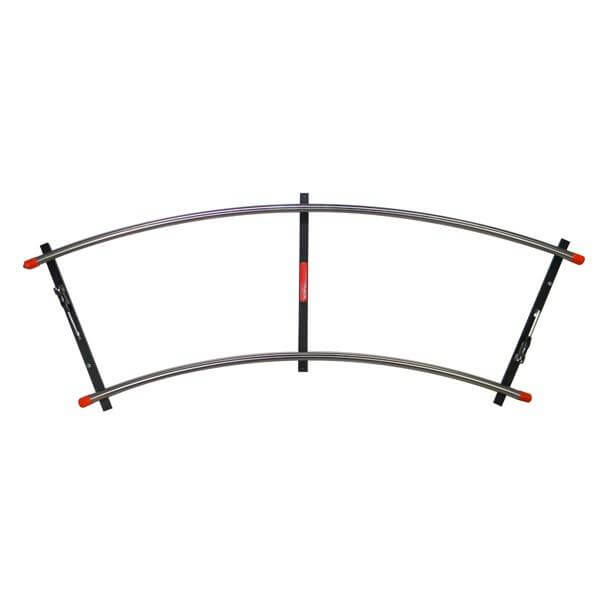

Stainless Steel Curved Track 8 Foot Section - 20' Diameter
PN 397059 - Weight: 30.5lbs

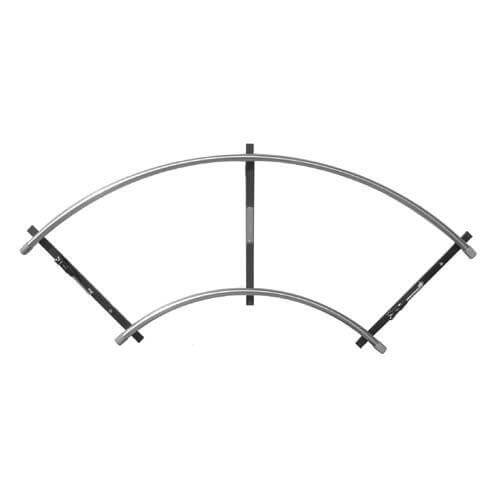

Stainless Steel Curved Track 90-degree Tight Radius - 10' Diameter
PN 397080 - Weight: 23lbs

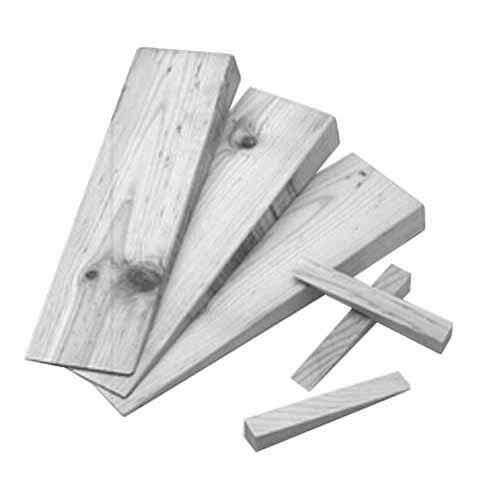

Track Wedges - Each
PN 399734 - Weight: .50lbs

msegrip

Stainless Steel Track

From

Matthews manufactures and supplies the industry with stainless steel Dolly Track. All Matthews track now has black cross members.

Matthews curved tracks are available to complete 10' and 20' diameter circles. Be advised that most dollies will not navigate the 10' circle without the addition of a multi-wheeled device such as the Matthews Centipede #395200.

Four pieces of 90-degree curve track are needed to complete a circle. Eight pieces are required for 20' diameter circle. All Matthews Dolly Track is rated to a maximum payload of 1200 Lbs (545kg) at the industry standard of 24.5" center to center track width.

Please note $15.00 Packaging for 8' Straight Track, $20.00 Packaging for 10' Straight Track. To insure against damage to the product during transit, all Curve Dolly Track must be crated prior to shipment. Please allow 2 working days from receipt of order for crating. Matthews will not be responsible for track shipped without crating.

Stainless Steel Track Straight 4 Foot Section
PN 397070 - Weight: 22.5lbs
Stainless Steel Track Straight 8 Foot Section
PN 397065 - Weight: 36lbs
Stainless Steel Track Straight 10 Foot Section
PN 397067 - Weight: 40lbs
Stainless Steel Curved Track 8 Foot Section - 20' Diameter
PN 397059 - Weight: 30.5lbs
Stainless Steel Curved Track 90-degree Tight Radius - 10' Diameter
PN 397080 - Weight: 23lbs
Track Wedges - Each
PN 399734 - Weight: .50lbs

Type

  • 8' Curved - 20' Diameter
  • 8' Straight
  • 10' Straight
  • 4' Straight
  • Curved 90-degree Tight Radius
View product
