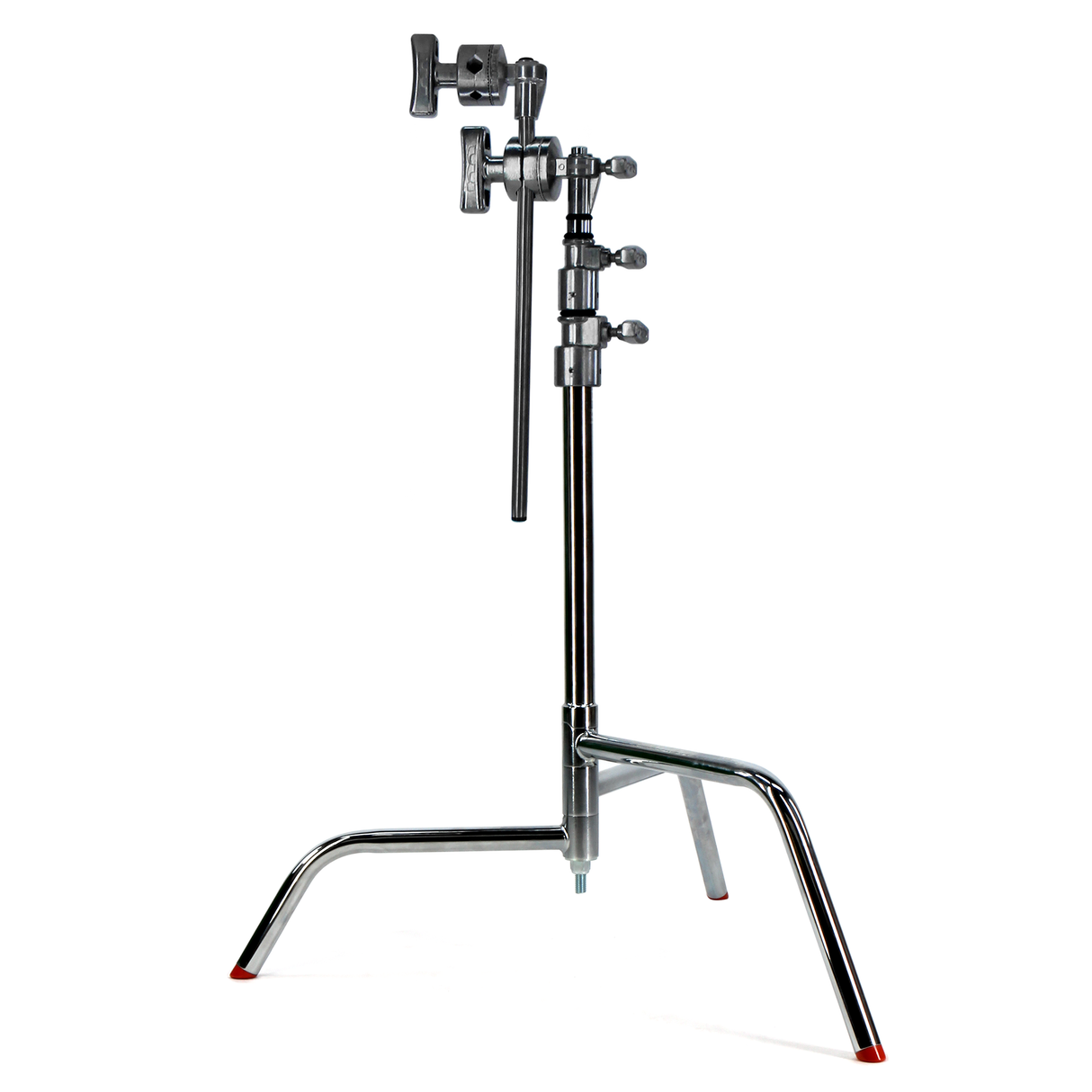

Exploded View - 339574 20" C-STAND SPRING LOADED BASE
Please note c-stands assembled before 2009 use 5/16-thread size t-handles and c-stands assembled after 2009 use 3/8-thread size t-handles. When ordering replacements please check your thread size prior to placing your order.
| Drawing # | Part # | Description | Quantity |
| 1 | 3001/100 | O-RING:#318:1.0ID | 1 |
| 2 | 2027-2 | TOP RISR WMT,.75D,19.5″ | 1 |
| 3 | 3002/100 | O-RING:#314:.75″ID | 1 |
| 4 | 4001 | BONNT HSG#43,1.00-.75 W/THANDL | 1 |
| 5 | 62100-01 | BRAKE,BRS,SML,#3 | 1 |
| 7 | 2111 | T-HAND,3/8-16,@88″BULLET | 1 |
| 8 | 1004/100 | SET,SOC,1/4-20,@.25″ KNURLED | 6 |
| 9 | 3001/100 | O-RING:#318:1.0ID | 1 |
| 10 | 14006 | TB,ST,1.0D,#16,@19.5”FL | 1 |
| 11 | 4000 | BONNT HSG,#54,1.25-1.00 W/THNDL | 1 |
| 12 | 62101-01 | BRAKE,BRS,MED,#4 | 1 |
| 13 | 339561-1D | BASE COL WMT,20” CS | 1 |
| 14 | 1003 | CS,HX,1/2-13,@3.5″,MOD | 1 |
| 15 | 1002/100 | WSH,ST,1.0D,.5ID,@.063T | 1 |
| 16 | 1005/100 | SPG,COMP,SS,C-STD,#S-66 | 1 |
| 17 | 2002 | LEG WMT,TOP,C-STD | 1 |
| 18 | 2001 | LEG WMT,MID,C-STD | 1 |
| 19 | 2000 | LEG WMT,BOT,C-STD | 1 |
| 21 | 3000 | FOOT C-STAND, ORANGE | 3 |
| 22 | 1001/100 | WSH,ST,1.38D,.5ID,@.063T | 1 |
| 23 | 1000/100 | LNUT,HX,1/2-13 | 1 |
