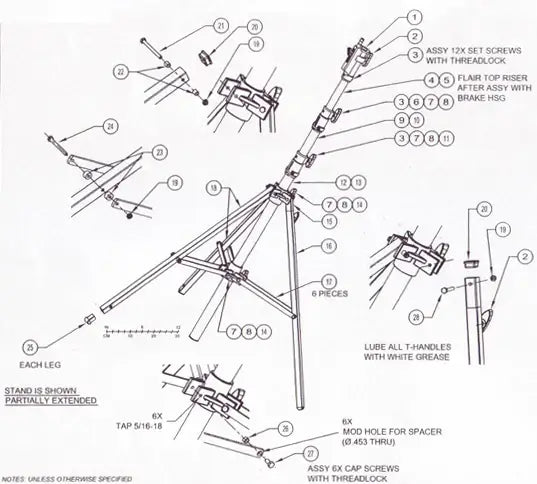

| Detail # |
Quantity |
Part # |
Description |
Detail # |
Quantity |
Part # |
Description |
| 28 |
2 |
1100/100 |
Cap Screw, Hex Head 1/4-20 |
14 |
2 |
4009 |
Brake Housing, Spider |
| 27 |
6 |
1124/100 |
Cap Screw Hex Head 5/16-18 |
13 |
1 |
11002 |
Riser Tube 1.75″ dia. |
| 26 |
6 |
1106/100 |
Leg Brace Bushing |
12 |
1 |
3010/100 |
O Ring Blk fits 1.75″ dia |
| 25 |
3 |
3020 |
Leg Foot, Blk fits 1″ square |
11 |
1 |
4002 |
Brake Housing, Riser |
| 24 |
3 |
1092/100 |
Cap Screw, Hex Head |
10 |
1 |
12004 |
Riser Tube, Chrome 1.5″ dia. |
| 23 |
6 |
3018/100 |
Spacer, White .63″ |
9 |
1 |
3005/100 |
O Ring Blk, fits 1.5″ dia. |
| 22 |
2 |
1096/100 |
Spacer, Alum .38″ |
8 |
4 |
62102-01 |
Brake Pad, Brass Large |
| 21 |
1 |
1095/100 |
Cap Screw, Hex Head SST |
7 |
4 |
63301 |
T Handle 5/16-18 |
| 20 |
3 |
3019/100 |
Leg Cap, Blk |
6 |
1 |
4003 |
Brake Housing, Riser |
| 19 |
6 |
1229/100 |
Locknut, Thin Hex 1/4-20 |
5 |
1 |
13002 |
Riser Tube, Chrome 1.25″ dia. |
| 18 |
2 |
16005 |
Leg Tube Chrome, 1″ Square |
4 |
1 |
3016/100 |
O Ring, Blk fits 1.25″ dia. |
| 17 |
6 |
29001 |
Leg Brace, Alum |
3 |
9 |
1104/100 |
Set Screw, Hex Socket |
| 16 |
1 |
366065-8 |
RML Wmt 36″ Lower Chrome |
2 |
2 |
63302 |
T Handle 5/16-18 |
| 15 |
1 |
2020 |
RML Wmt 36″ Upper Chrome |
1 |
1 |
4007 |
Pop-up Head Assy |
