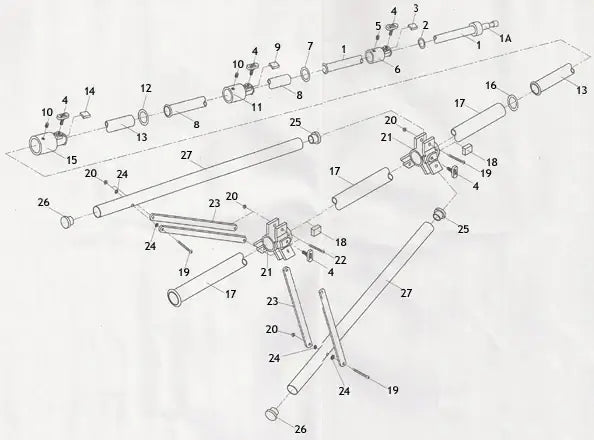

Exploded View - 387485 KIT STAND MEDIUM DUTY MAXI STEEL
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 27 | 3 | 387485-26 | Tube | 13 | 1 | 387485-13 | Tube |
| 26 | 3 | 387485-25 | Plastic Leg Foot | 12 | 1 | 387485-12 | O-Ring |
| 25 | 3 | 387485-24 | Plastic Cap | 11 | 1 | 387485-11 | Middle Bonnet Casting |
| 24 | 6 | 387485-23 | Washer, Spring | 10 | 6 | 387485-10 | Socket Set Screw |
| 23 | 6 | 387485-22 | Holder | 9 | 1 | 387485-9 | BRS Brake |
| 22 | 3 | 387485-21 | Bolt | 8 | 1 | 387485-8 | Tube |
| 21 | 2 | 387485-20 | Spider Casting | 7 | 1 | 387485-7 | O-Ring |
| 20 | 9 | 387485-19 | Nylon Nut | 6 | 1 | 387485-6 | Small Bonnet Casting |
| 19 | 6 | 387485-18 | Bolt | 5 | 3 | 387485-5 | Socket Set Screw |
| 18 | 2 | 62100-01 | BRS Brake, Small | 4 | 5 | 2017-1 | T-Handle |
| 17 | 1 | 387485-17 | Tube | 3 | 1 | 387485-4 | BRS Brake |
| 16 | 1 | 387485-16 | O-Ring | 2 | 1 | 387485-3 | O-Ring |
| 15 | 1 | 387485-15 | Large Bonnet Casting | 1 | 1 | 387485-2 | Tube |
| 14 | 1 | 387485-14 | BRS Brake | 1A | 1 | 387485-1 | Connector, Pin |
