LITEMOVER
Matthews University
Union Discounts available. Quantity discounts available. Please call for details.

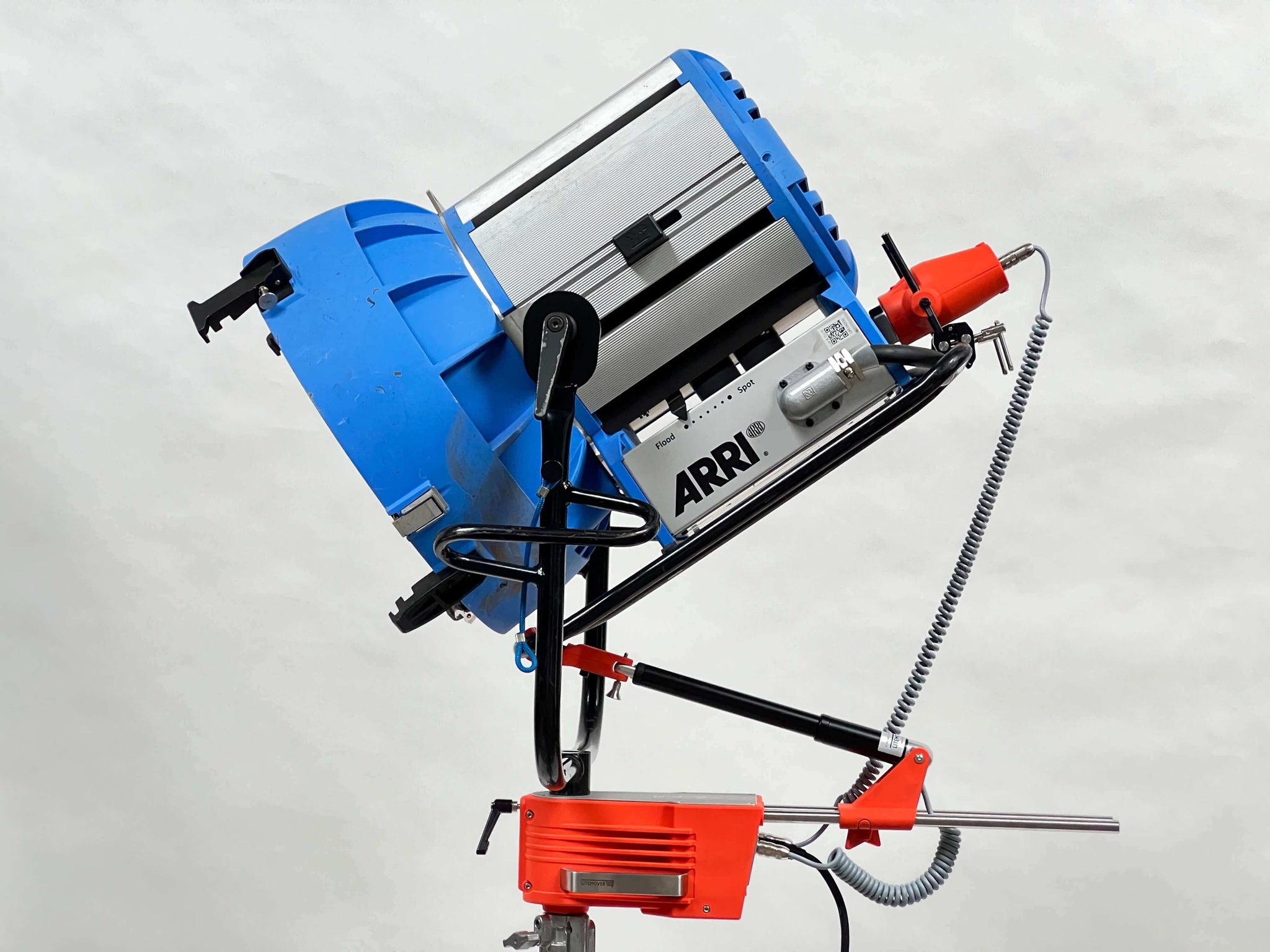

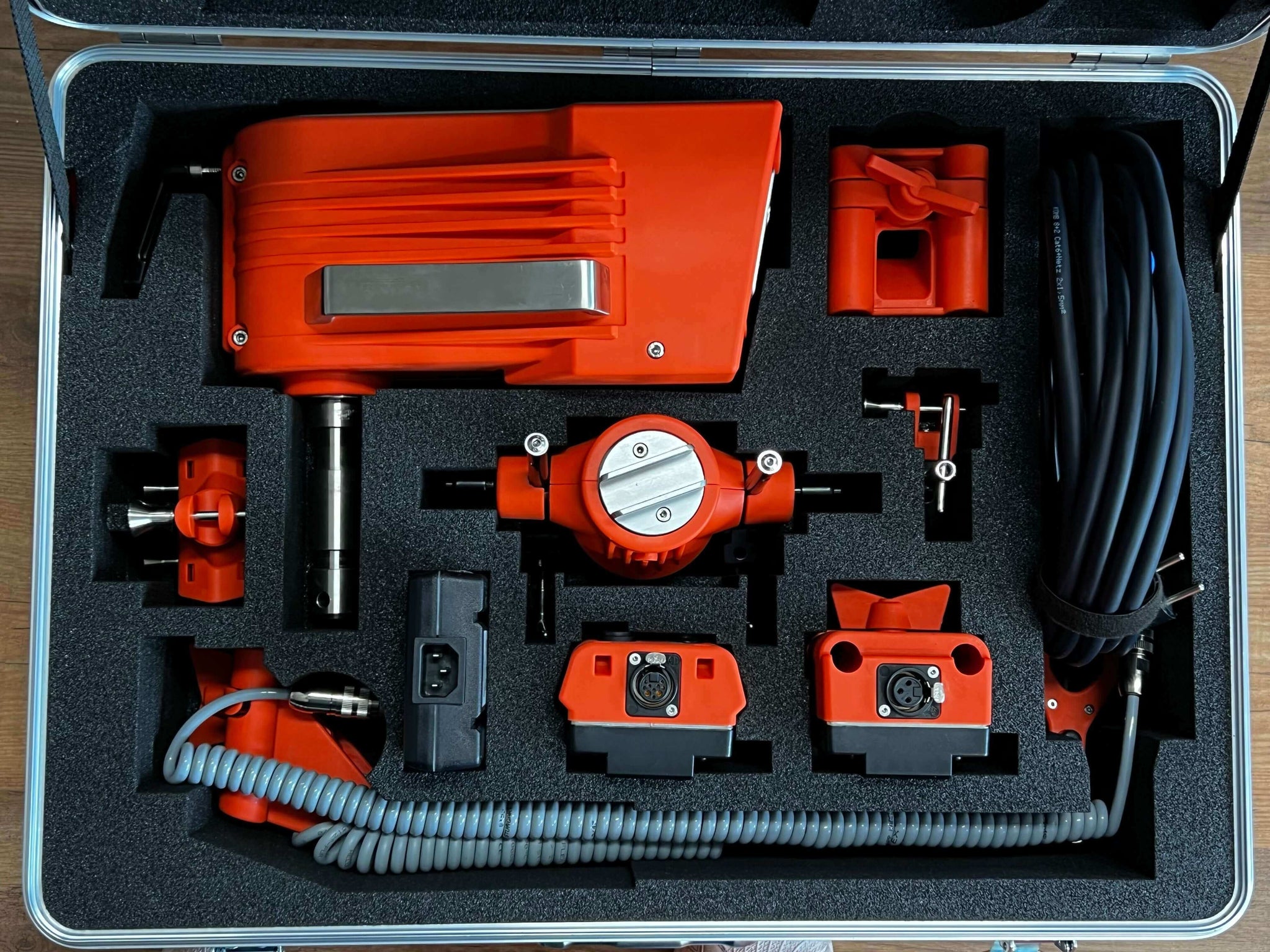

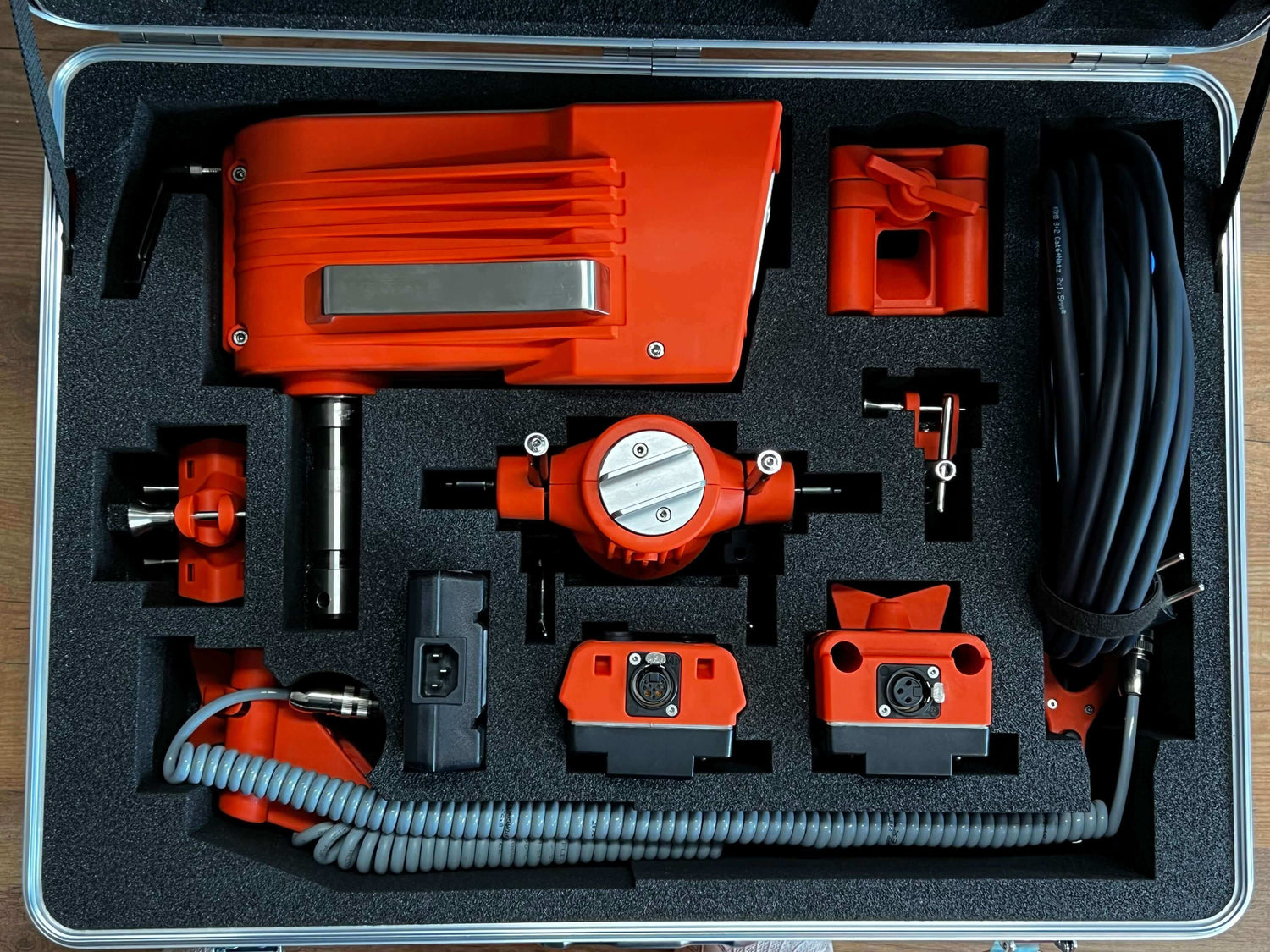

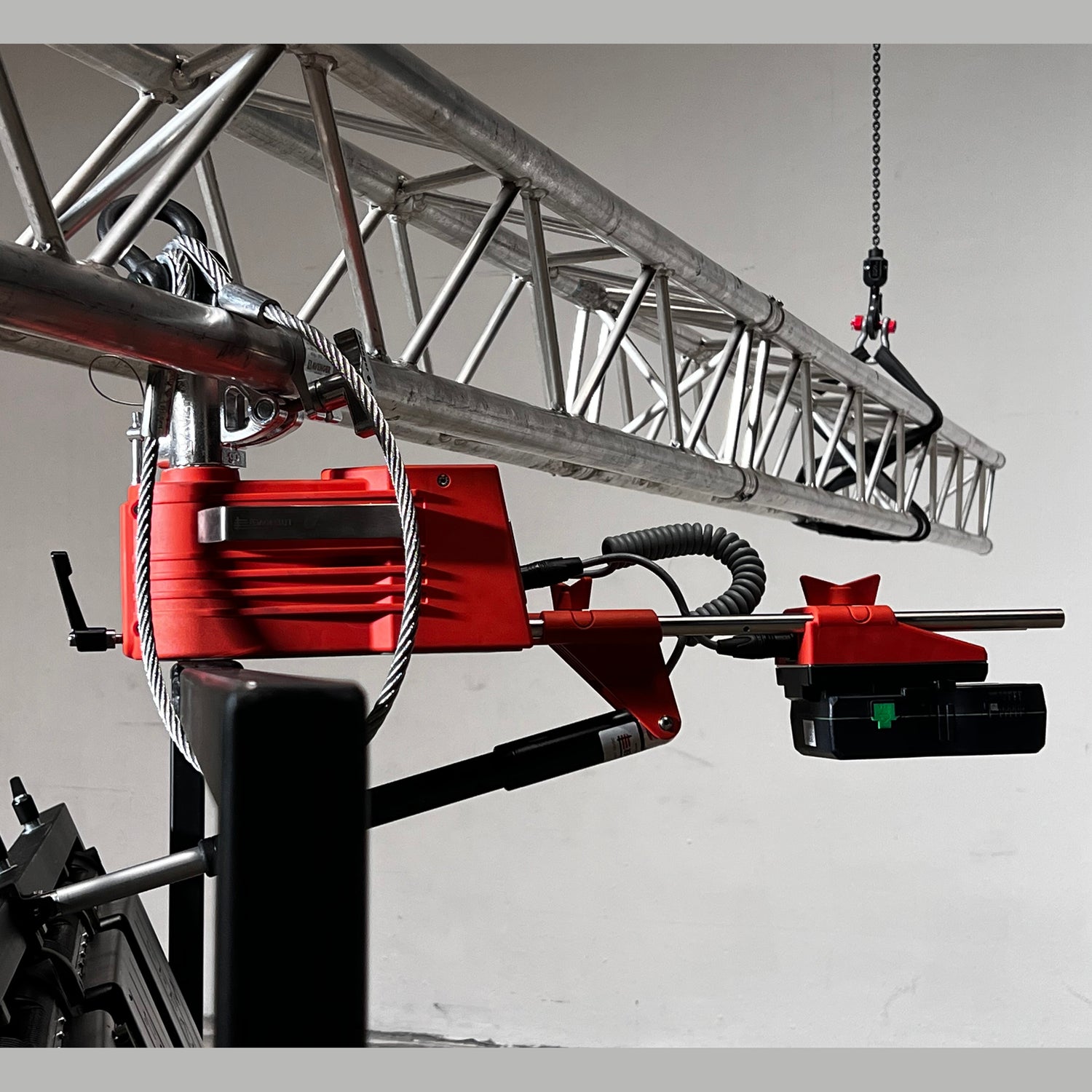

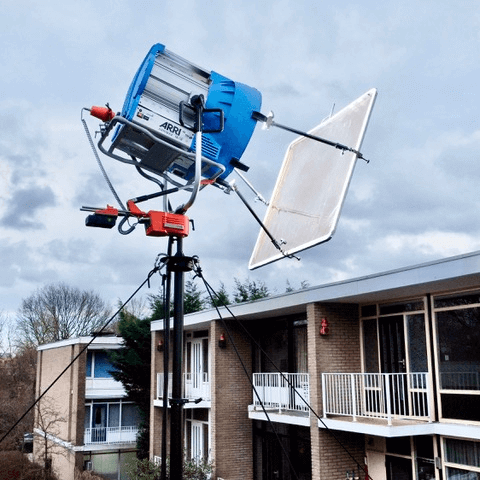

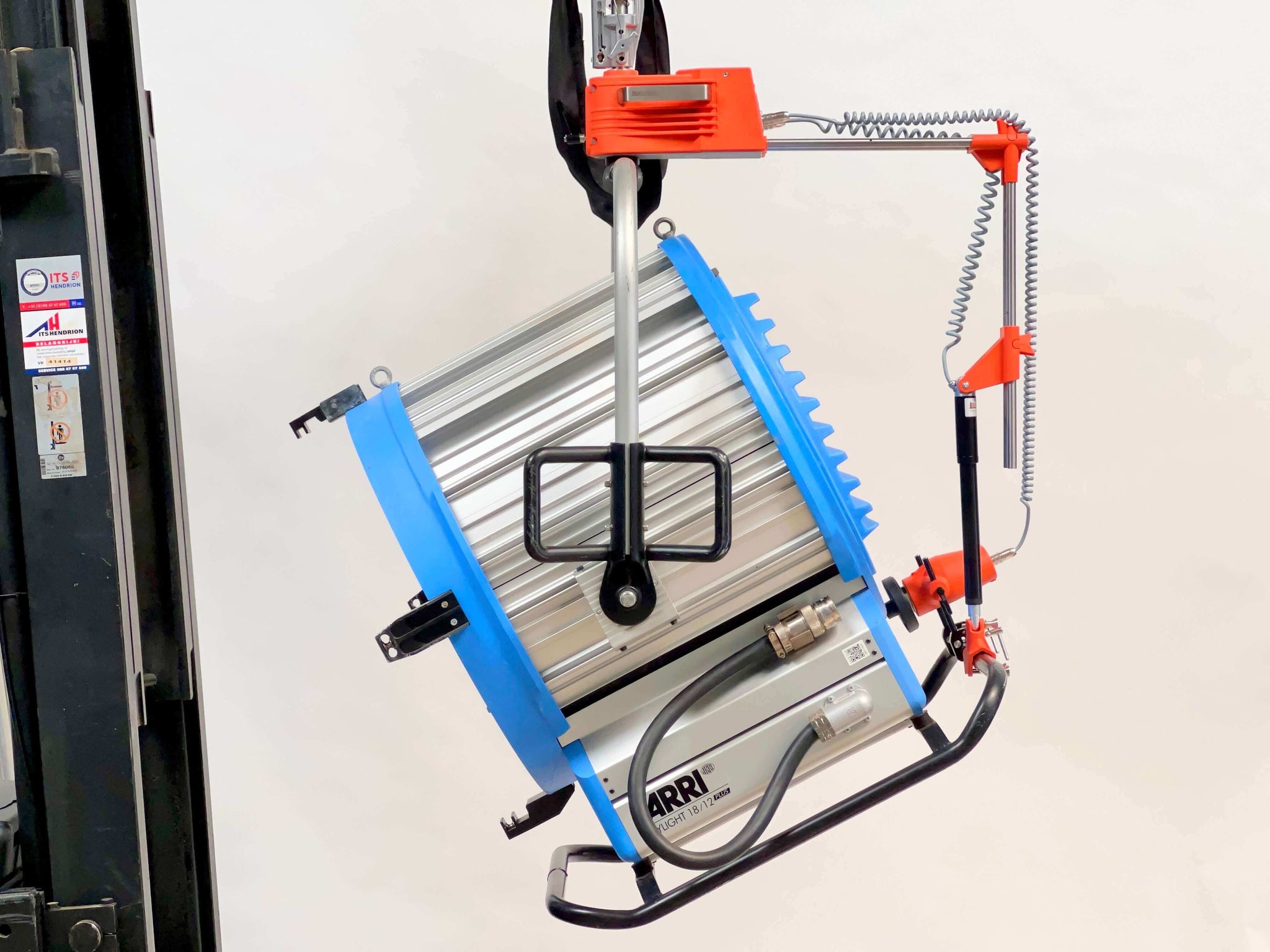

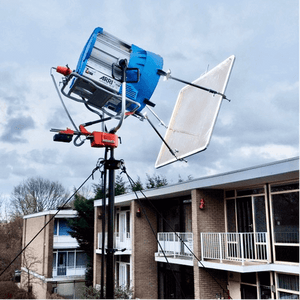

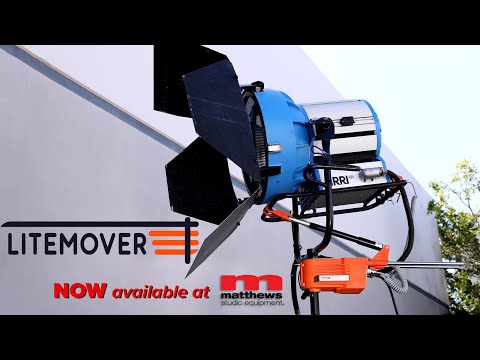

The Litemover is a universal remote head designed for large industry specific lights and reflector boards or mirrors. Its advanced features, such as compatibility with DMX, WDMX, RDM, or basic hand control, make it an ideal tool for professionals looking for a reliable and efficient way to control lights and reflectors from the ground. Its easy-to-understand interface and intuitive controls make it an essential tool for any technician looking to streamline their workflow and save time. The system can be used right side up or underslung and pairs nicely with the Airclimber or Max Menace Arm. It will control your pan, tilt and even control your spot/flood function. The Litemover comes in a hard rolling case as a complete kit with everything you will need to rig your light fixture. Patent pending.
Maximum load capacity: 100kg / 220lbs
Adaptors:
- PN 377790-27 Skypanel Adapter
- PN 377790-28 Powerbeam Adapter
- PN 377790-29 K5600 Adapter
- PN 377790-30 CRLS Mirror Adapter
- PN 377790-31 Matthews Mirror Adapter
- PN 377790-32 Vortex Multi Yoke Adapter
- PN 377790-33 Cineo R15 Adapter
- PN 377790-34 Sumolight Sumomax Adapter
- PN 377790-35 Fiilex Q10 Adapter
- PN 377790-36 Arri Orbiter Adapter
- PN 377790-37 Arri Rental Briklok
- PN 377790-38 Arri Skypanel X21 Adapter
- PN 377790-39 Arri Skypanel X22/X2 Adapter

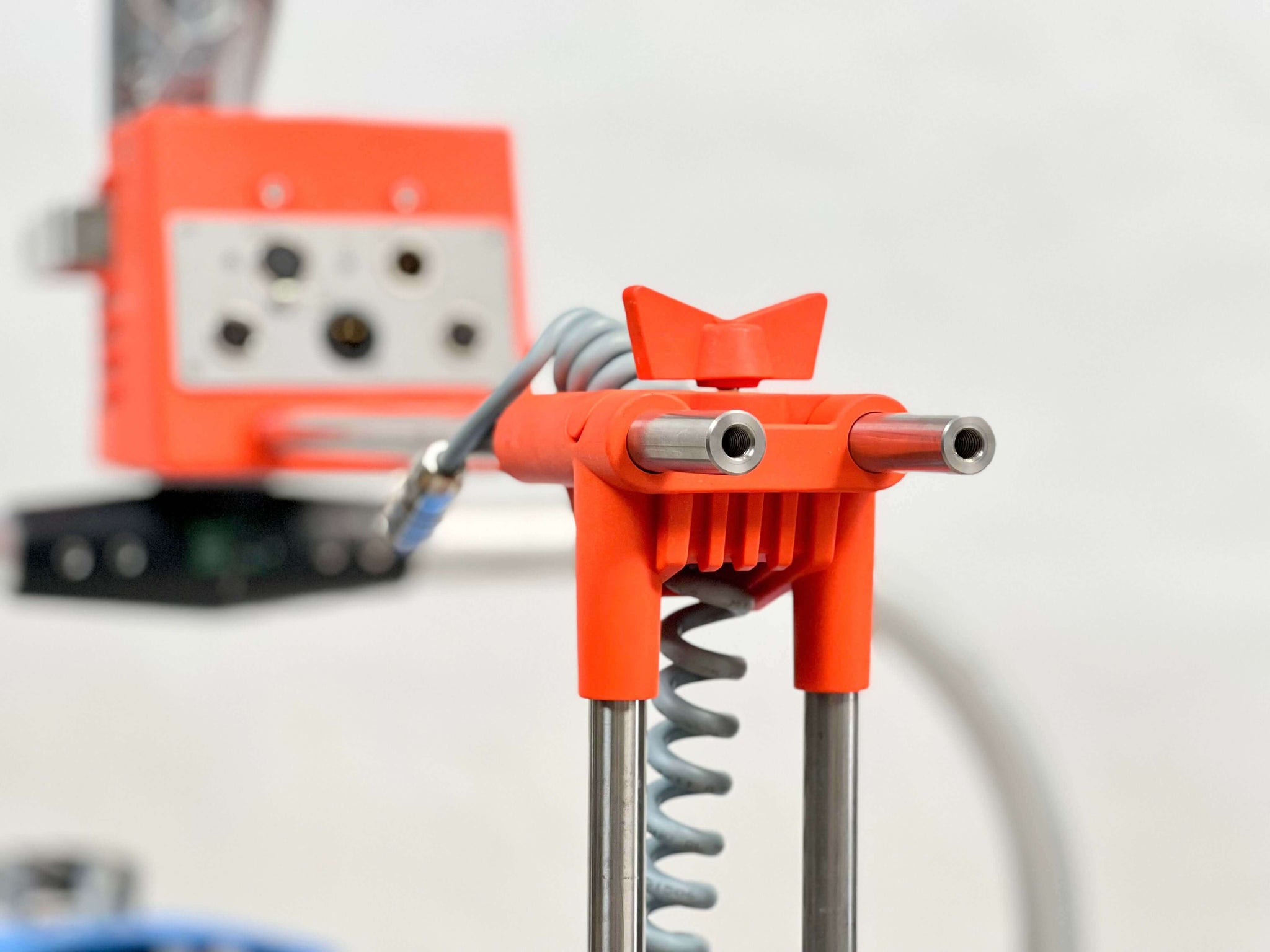

- PN 377790-40 Litemover Spot/Flood Rods Extension Set

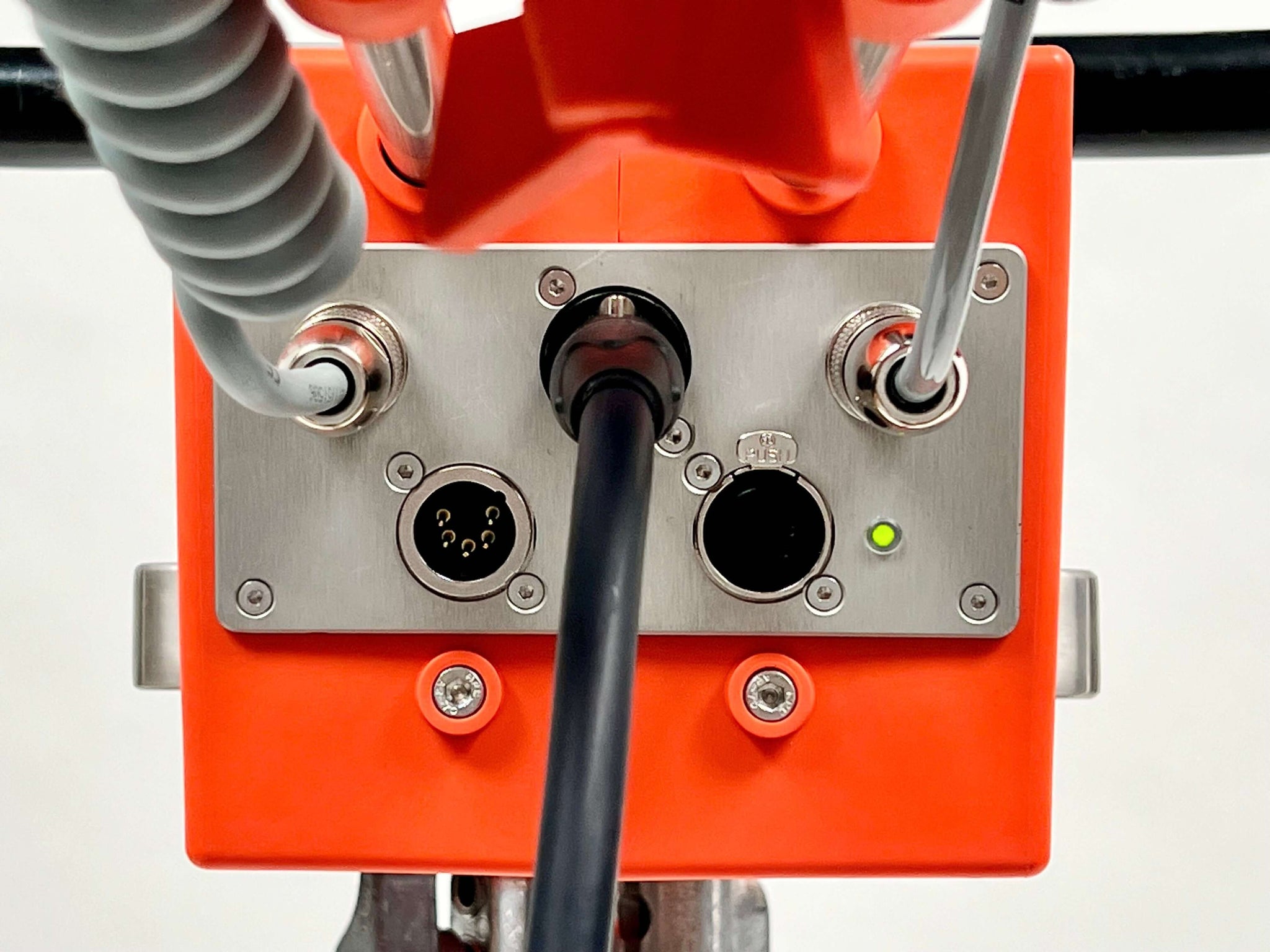

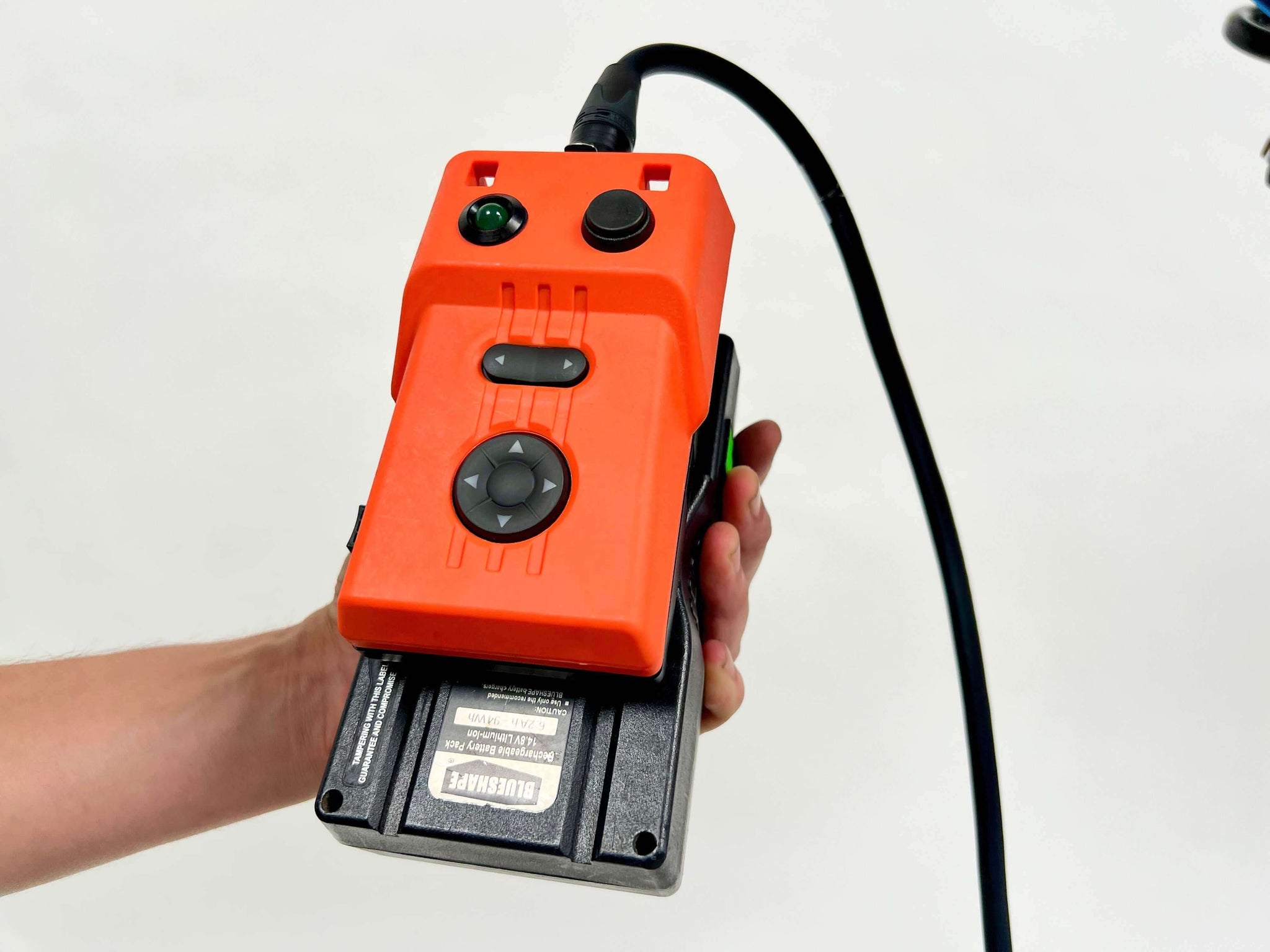

Control via Litemover handset or DMX. CRMX receiver is built in and may be easily integrated into your existing system.
Operating modes:
- Handheld controller (also in combination with DMX
- DMX (dmx-table)
- CRMX
Change settings by RDM - you will need an RDM controller like the City Theatrical DMX-Cat or the Swisson XMT-350. Profile available for Gafferscontrol and Blackout.
Power Solutions:
- 12 Volt VCD / 4 Amp. max.
- 220-110 Volt AC (V-Lock adapter included)
- V-Lock Battery 14,4 Volt (optional)
DMX Table:
| Channel 1: ON/OFF | ||
| OFF | #0-254 | %0-99 |
| ON | #255 | %100 |
| Channel 2: Pan | ||
| OFF | #0-50 / 103-152 / 205-255 | %0-19 / 40-59 / 80-100 |
| LEFT | #51-102 | %20-39 |
| RIGHT | #153-204 | %60-79 |
| Channel 3: Tilt | ||
| OFF | #0-50 / 103-152 / 205-255 | %0-19 / 40-59 / 80-100 |
| UP | #51-102 | %20-39 |
| DOWN | #153-204 | %60-79 |
| Channel 4: Focus | ||
| OFF | #0-50 / 103-152 / 205-255 | %0-19 / 40-59 / 80-100 |
| LEFT | #51-102 | %20-39 |
| RIGHT | #153-204 | %60-79 |
Download Litemover Manual and Safety Instructions (.pdf)
Included Adapters:
Hand Connector:
Pin Connector:

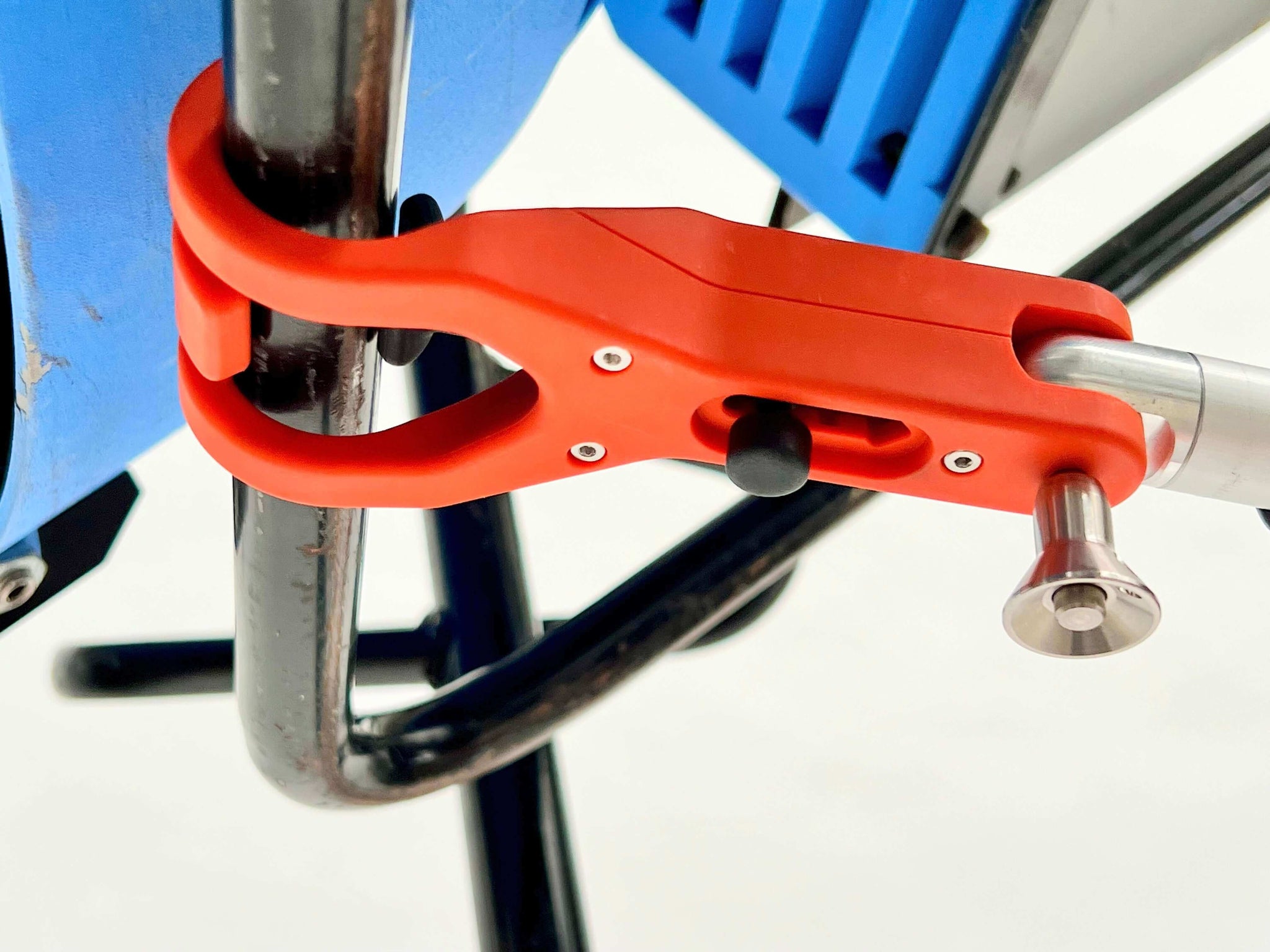

Clamp Connector:
