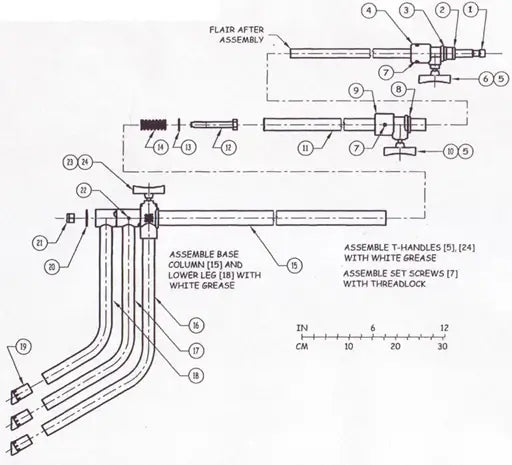

Exploded View - 339565 40" C-STAND SLIDING LEG
Please note c-stands assembled before 2009 use 5/16-thread size t-handles and c-stands assembled after 2009 use 3/8-thread size t-handles. When ordering replacements please check your thread size prior to placing your order.
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 24 | 1 | 62102-01 | Brake Pad, BRS large | 12 | 1 | 1003 | Cap Screw, Hex 1/2-13 |
| 23 | 1 | B63301 | T Handle, large 5/16-18 | 11 | 1 | 14002 | Riser, ST 1.0″ dia. |
| 22 | 2 | 1016/100 | MS Pan Head #10-32 | 10 | 1 | 62101-01 | Brake Pad, BRS medium |
| 21 | 1 | 1000/100 | Locknut, Hex 1/2-13 | 9 | 1 | 4000 | Bonnet Hsg #54 |
| 20 | 1 | 1001/100 | Washer, St 1.38″ dia. | 8 | 1 | 3001/100 | O Ring, Blk fits 1.0″ dia. |
| 19 | 3 | 3000 | Foot, orange | 7 | 6 | 1004/100 | Set Screw, soc. 1/4-20 |
| 18 | 1 | 2000 | Lwr Leg Wmt | 6 | 1 | 62100-01 | Brake Pad, BRS small |
| 17 | 1 | 2019 | Mid Slider Leg Wmt | 5 | 2 | 63301 | T Handle, large 5/16-18 |
| 16 | 1 | B2016 | Upr Slider Leg Wmt Blk | 4 | 1 | 4001 | Bonnet Hsg #43 |
| 15 | 1 | 339562-1B | Slider Base Column Wmt | 3 | 1 | 3002/100 | O Ring Blk fits .75″ dia. |
| 14 | 1 | 1005/100 | Comp Spring, st | 2 | 1 | 3003/100 | O Ring Blk fits .63″ dia. |
| 13 | 1 | 1002/100 | Washer st 1.0 dia. | 1 | 1 | 2027-8 | Top Riser Wmt 40″ |
