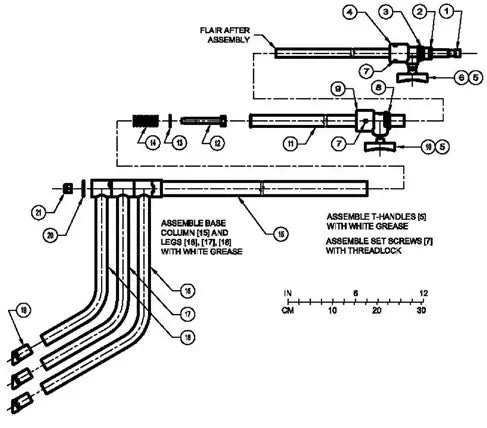

Exploded View - 330568 60" C-Stand
Please note c-stands assembled before 2009 use 5/16-thread size t-handles and c-stands assembled after 2009 use 3/8-thread size t-handles. When ordering replacements please check your thread size prior to placing your order.
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 21 | 1 | 1000/100 | Locknut Hex | 10 | 1 | 62101-01 | Brake Pad Med |
| 20 | 1 | 1001/100 | Washer 1.38″ Dia | 9 | 1 | 4000 | Bonnet Hsg #54 |
| 19 | 3 | 3000 | Foot Orange | 8 | 1 | 3001/100 | O-Ring 1.0″ Dia |
| 18 | 1 | 2000 | Lwr Leg Wmt | 7 | 6 | 1004/100 | Set Screw |
| 17 | 1 | 2001 | Mid Leg Wmt | 6 | 1 | 62100-01 | Brake Pad Small |
| 16 | 1 | 2002 | Upr Leg Wmt | 5 | 2 | 63301 | T-Handle Large |
| 15 | 1 | 339561-1C | Base Column Wmt | 4 | 1 | 4001 | Bonnet Hsg #43 |
| 14 | 1 | 1005/100 | Comp Spring | 3 | 1 | 3002/100 | O-Ring .75″ Dia |
| 13 | 1 | 1002/100 | Washer 1.0″ Dia | 2 | 1 | 3003/100 | O-Ring .63″ Dia |
| 12 | 1 | 1003 | Cap Screw | 1 | 1 | 2027-9 | Top Riser Wmt |
| 11 | 1 | 14004 | Riser 1.0″ Dia |
