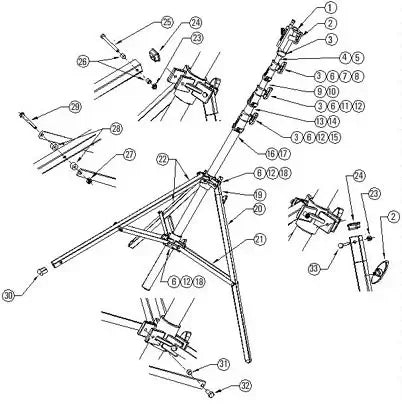

Exploded View - 366065 SKY HIGH TRIPLE RISER COMBO STAND
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description | |||||||
| 33 | 2 | 1100/100 | Cap Screw grade 5 | 16 | 1 | 3010/100 | o ring black 1.75″ | |||||||
| 32 | 6 | 1124/100 | Cap Screw Steel 5/16-18 | 15 | 1 | 4002 | riser brake housing 1.75″ | |||||||
| 31 | 6 | 1106/100 | alum brushing | 14 | 1 | 12004 | riser tube chrome 1.5″ | |||||||
| 30 | 3 | 3020 | leg foot, black 1″ | 13 | 1 | 3005/100 | o ring black 1.5″ | |||||||
| 29 | 3 | 1092/100 | cap screw steel 1/4-20 | 12 | 4 | 62102-01 | brake pad brass large | |||||||
| 28 | 6 | 3018/100 | spacer, white | 11 | 1 | 4003 | riser brake housing 1.5″ | |||||||
| 27 | 3 | 1010/100 | locknut hex | 10 | 1 | 13002 | riser tube chrome 1.25″ | |||||||
| 26 | 2 | 1096/100 | spacer alum | 9 | 1 | 3016/100 | o ring black 1.25″ | |||||||
| 25 | 1 | 1095/100 | cap screw | 8 | 1 | 4010 | riser brake housing 1.25″ | |||||||
| 24 | 3 | 3019/100 | leg cap, black 1″ | 7 | 1 | 62101-01 | brake pad brass med. | |||||||
| 23 | 3 | 1229/100 | locknut, thin hex | 6 | 5 | 63301 | t handle flat tip | |||||||
| 22 | 2 | 16005 | leg tube, chrome 1″ | 5 | 1 | 366065-6 | top riser wmt 1″ | |||||||
| 21 | 6 | 29002 | leg brace, alum | 4 | 1 | 3001/100 | o ring black 1″ | |||||||
| 20 | 1 | 366065-8 | lower RML wmt 1″ | 3 | 12 | 1104/100 | set screw hex socket | |||||||
| 19 | 1 | 2020 | upper RML wmt 1″ | 2 | 2 | 63302 | t handle serrated tip | |||||||
| 18 | 2 | 4009 | spider brake housing alum | 1 | 1 | 4007 | pop up housing assy | |||||||
| 17 | 1 | 12035-12 | riser tube chrome 1.5″ | |||||||||||
