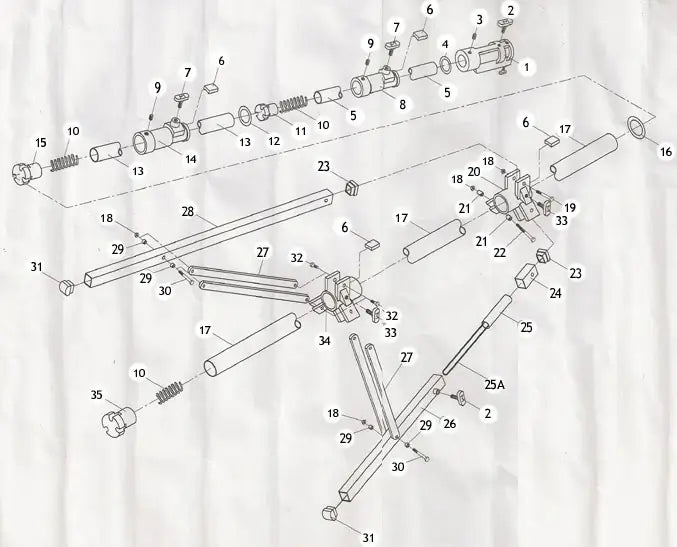

Exploded View - 369675 Combo Digital Stand

Detailed gearbox assembly diagram with numbered components.
Detail # Quantity Part # Description Detail # Quantity Part # Description
35 1 369675-26 1.5″ Tube Fixture 18 6 369675-13 Lock Nut
34 1 4009D-B Spider Casting 17 1 369675-12 1.5″ Stl Tube
33 2 63309(B) 5/16-18 T-Handle 16 1 369675-11 #325 O-Ring
32 6 369675-25 Hex Head Bolt 15 1 369675-10 1.25″ Tube Fixture
31 3 3021 Leg Foot 14 1 4003 #56 Riser Casting
30 3 369675-24 Hex Head Bolt 13 1 369675-9 1.25″ Stl Tube
29 6 369675-23 Clear Spacer 12 1 369675-8 #322 O-Ring
28 2 369675-22 .88″ Stl Tube 11 1 369675-7 1″ Tube Fixture
27 6 369675-21 T Holder 10 3 369675-6 Spring
26 1 369675-20 .88″ Stl Tube 9 6 369675-5 Socket Set Screw
25A 1 369675-19A Iron Wire 8 1 4010 #54 Riser Casting
25 1 369675-19 .75″ Stl Tube 7 2 63301(B) 5/16-18 T-Handle
24 1 369675-18 .88″ Stl Tube 6 4 62102-01 Brake Copper Gasket
23 3 369675-17 .88″ Square Cap 5 1 369675-4 1″ Stl Tube
22 1 369675-16 Hex Head Bolt 4 1 369675-3 #318 O-Ring
21 2 369675-15 Alum Spacer 3 3 369675-2 5/16-18 Socket Set Screw
20 1 4009D-A Spider Casting Drill Hole 2 2 63302(B) 5/16-18 T-Handle
19 2 369675-14 Hex Head Bolt 1 1 369675-1 Top Receiver Assembly
