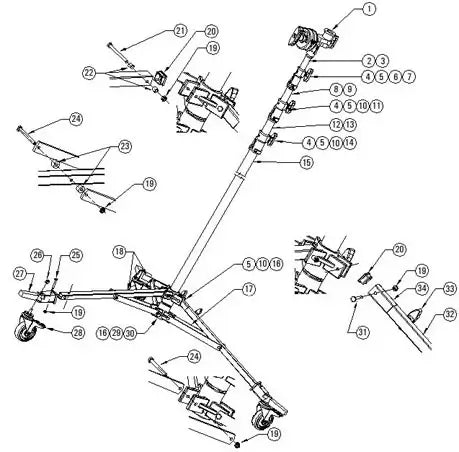

| Detail # |
Quantity |
Part # |
Description |
Detail # |
Quantity |
Part # |
Description |
|
|
|
|
17 |
6 |
28003 |
Leg brace, alum |
| 34 |
1 |
20221 |
Upper RM Wmt chrome 11.25″ |
16 |
2 |
4009 |
Spider Brake Housing, alum |
| 33 |
1 |
63202 |
t handle 5/16-18 |
15 |
1 |
11004 |
Riser Tube 1.75″ dia. |
| 32 |
1 |
16115 |
Lower RML Wmt chrome 21.5″ |
14 |
1 |
4002 |
Riser Brake Housing #76 |
| 31 |
2 |
1100/100 |
Hex Cap Screw 1/4-20 |
13 |
1 |
3005/100 |
o ring, black 1.5″ dia. |
| 30 |
1 |
1280/100 |
Flat head screw, 1/4-20 @1.5″ |
12 |
1 |
12005 |
Riser tube 1.5″ dia. |
| 29 |
1 |
1010/100 |
Locknut, hex 1/4-20 |
11 |
1 |
4003 |
Riser brake housing #56 |
| 28 |
3 |
6017 |
Caster wheel 4″ |
10 |
3 |
62102-01 |
Brake pad, brass, large |
| 27 |
3 |
4008 |
Caster foot with toe |
9 |
1 |
3016/100 |
o ring black 1.25″ dia. |
| 26 |
3 |
1175/100 |
locknut, hex 3/8-16 |
8 |
1 |
13006 |
Riser tube 1.25″ dia. 60″ |
| 25 |
3 |
1090/100 |
Hex cap screw 1/4-20 @ 1.75″ |
7 |
1 |
4010 |
Riser brake housing #56 |
| 24 |
6 |
1092/100 |
Hex cap screw 1/4-20 @ 2.5″ |
6 |
1 |
62101-01 |
Brake pad, brass, medium |
| 23 |
6 |
3018/100 |
Spacer, white |
5 |
4 |
63301 |
t handle, alum |
| 22 |
2 |
1096/100 |
Spacer, alum |
4 |
9 |
1104/100 |
Set screw, 5/16-18 |
| 21 |
1 |
1095/100 |
Hex cap screw 1/4-20 @2.75″ |
3 |
1 |
14017 |
Riser tube 1″ dia. |
| 20 |
3 |
3019/100 |
Leg cap, black |
2 |
1 |
3001/100 |
o ring black, 1″ dia. |
| 19 |
12 |
1229/100 |
Locknut, thin hex 1/4-20 |
1 |
1 |
54000 |
Griphead subassembly, 4″ |
| 18 |
2 |
16103 |
Leg tube, chrome 24″ |
