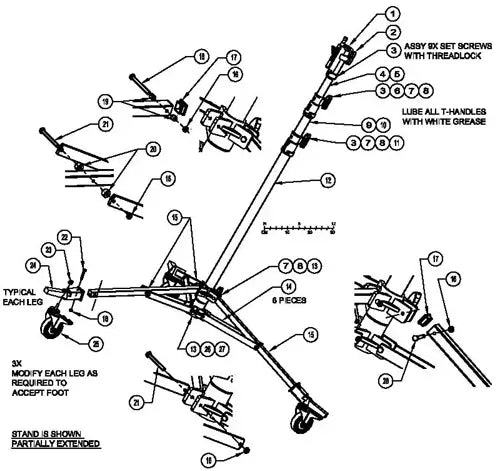

Exploded View - 386027 SENIOR ROLLER STAND DOUBLE RISER
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 28 | 2 | 1100/100 | Cap Screw Hex 1/4-20 | 14 | 6 | 28003 | Leg Brace |
| 27 | 1 | 1280/100 | Cap Screw Flat 1/4-20 | 13 | 2 | 4009 | Brake Hsg #112 |
| 26 | 1 | 1010/100 | Locknut Hex 1/4-20 | 12 | 1 | 12035-21 | Riser Tube 1.75″ Dia |
| 25 | 3 | 6017 | Caster Wheel 4″ | 11 | 1 | 4002 | Brake Hsg #R76 |
| 24 | 3 | 4006 | Caster Foot | 10 | 1 | 12004 | Riser Tube 1.5″ Dia |
| 23 | 3 | 1175/100 | Locknut Hex 3/8-16 | 9 | 1 | 3005/100 | O-Ring 1.5″ Dia |
| 22 | 3 | 1090/100 | Cap Screw Hex 1/4-20 | 8 | 3 | 62102-01 | Brake Pad Large |
| 21 | 6 | 1092/100 | Cap Screw Hex 1/4-20 | 7 | 3 | 63301 | T-Handle #D |
| 20 | 6 | 3018/100 | Spacer .63″ | 6 | 1 | 4003 | Brake Hsg #R56 |
| 19 | 2 | 1096/100 | Spacer .38″ | 5 | 1 | 13003 | Riser Tube 1.25″ Dia |
| 18 | 1 | 1095/100 | Cap Screw Hex 1/4-20 | 4 | 1 | 3016/100 | O-Ring 1.25″ Dia |
| 17 | 3 | 3019/100 | Leg Cap 1″ Square | 3 | 9 | 1104/100 | Set Screw Hex 5/16-18 |
| 16 | 12 | 1229/100 | Locknut Hex 1/4-20 | 2 | 1 | 63302 | T-Handle #D |
| 15 | 3 | 16103 | Leg Tube 1″ Square | 1 | 1 | 4007 | Pop-Up Hsg Assembly |
