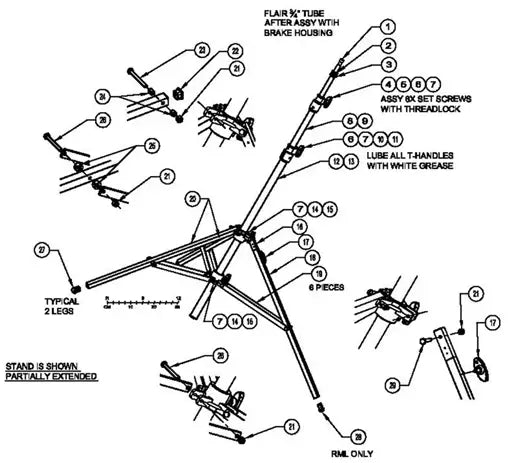

Exploded View - 386030 Beefy Baby Stand 2xr RML
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 29 | 2 | 1090/100 | Cap Screw Hex 1/4-20 | 14 | 2 | 62102-01 | Brake Pad Large |
| 28 | 1 | 21-0026 | Leg Foot | 13 | 1 | 3016/100 | O-Ring 1.25″ Dia |
| 27 | 2 | 3009/100 | Leg Foot | 12 | 1 | 23001 | Riser Tube 1.25″ Dia |
| 26 | 6 | 1091/100 | Cap Screw Hex 1/4-20 | 11 | 1 | 4000 | Brake Hsg #54 |
| 25 | 6 | 3018/100 | Spacer .63″ | 10 | 1 | 62101-01 | Brake Pad Med |
| 24 | 2 | 1096/100 | Spacer .38″ | 9 | 1 | 3001/100 | O-Ring 1″ Dia |
| 23 | 1 | 1092/100 | Cap Screw Hex 1/4-20 | 8 | 1 | 24001 | Riser Tube 1.0″ Dia |
| 22 | 2 | 3014/100 | Leg Cap | 7 | 4 | 63301 | T-Handle #B |
| 21 | 9 | 1010/100 | Locknut Hex 1/4-20 | 6 | 6 | 1004/100 | Set Screw Hex 1/4-20 |
| 20 | 2 | 27001 | Leg Tube .75″ Square | 5 | 1 | 4001 | Brake Hsg #43 |
| 19 | 6 | 29002 | Leg Brace | 4 | 1 | 62100-01 | Brake Pad Small |
| 18 | 1 | 25019 | RML Lower Wmt | 3 | 1 | 3002/100 | O-Ring .75″ Dia |
| 17 | 1 | 63302 | T-Handle #B | 2 | 2 | 3003/100 | O-Ring .63″ Dia |
| 16 | 1 | 2152 | RML Upper Assembly | 1 | 1 | 386030-2 | Top Riser Assembly |
| 15 | 2 | 4011 | Brake Hsg #102 |
