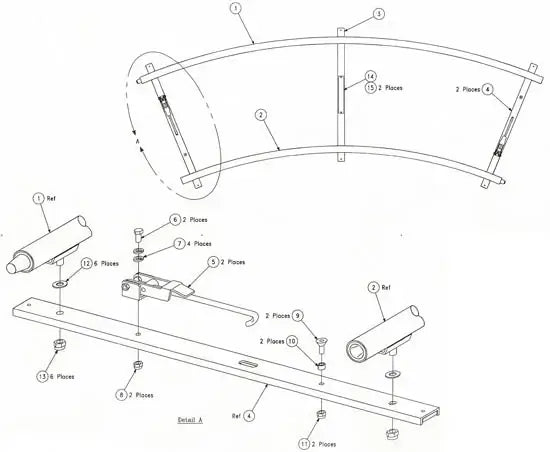

Exploded View - 397059 20FT. CURVED TRACK SST
| Detail # | Qty. | Part # | Description |
| 15 | 2 | 6479/100 | Pop Rivit |
| 14 | 1 | 6026/100 | Metal ID Plate |
| 13 | 6 | 6462/100 | Locknut, Hex |
| 12 | 6 | 1066/100 | 3/8″ Washer |
| 11 | 2 | 1307/100 | Locknut, Hex |
| 10 | 2 | 1106/100 | BSH, Alum |
| 9 | 2 | 1060/100 | CS, FLT, SS |
| 8 | 2 | 1010/100 | Locknut, Hex |
| 7 | 4 | 1029/100 | LWasher |
| 6 | 2 | 1164/100 | CS, Hex |
| 5 | 2 | 2004 | Over Center Latch |
| 4 | 2 | 5024 | XMem Wmt, End |
| 3 | 2 | 5025 | XMem Wmt, Mid |
| 2 | 1 | 397050-4 | Inner Wmt |
| 1 | 1 | 397050-5 | Outer Wmt |
