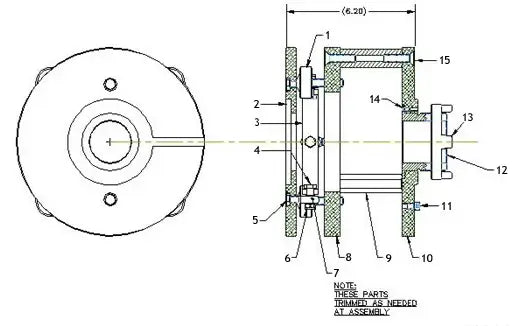

Exploded View - 415063 4-Way Level Head Mitchell Mount
| Detail # | Quantity | Part # | Description |
| 15 | 6 | 25-0301 | Cap Screw |
| 14 | 3 | 1129/100 | CS 8-32 |
| 13 | 1 | 1880 | Mitchell Nut |
| 12 | 1 | 5030 | Mitchell Spud |
| 11 | 1 | 1128/100 | CS Soc |
| 10 | 1 | 5029 | Bottom Plate |
| 9 | 3 | 11060-01 | Riser |
| 8 | 1 | 415063-2 | Middle Plate Assy |
| 7 | 4 | 1022/100 | Rod End Brg |
| 6 | 4 | 1307/100 | Lock Nut |
| 5 | 4 | 1038/100 | Jam Nut |
| 4 | 4 | 1034/100 | Cap Screw Hex |
| 3 | 1 | 417020-4 | Gimble Ring |
| 2 | 1 | 5058 | Mitchell Plate |
| 1 | 4 | 415063-3 | Adjusting Bolt |
