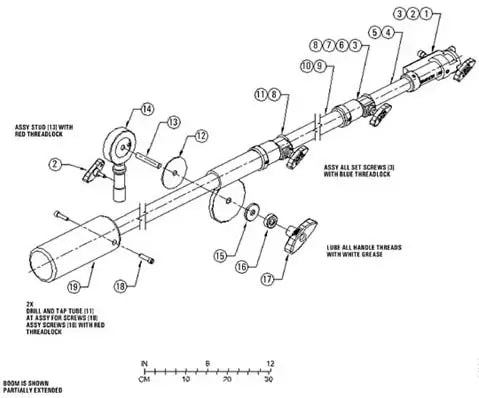

| Detail # |
Quantity |
Part # |
Description |
Detail # |
Quantity |
Part # |
Description |
| 19 |
1 |
B427803-2 |
Boom weight, black |
9 |
2 |
3005/100 |
o ring, black, fits 1.5″ dia. |
| 18 |
2 |
1334/100 |
cap screw, hex socket |
8 |
2 |
62102-01 |
brake pad, brass, large |
| 17 |
1 |
54003 |
t handle |
7 |
1 |
63301 |
t handle, flat tip |
| 16 |
1 |
5057/100 |
bearing 1.38″ dia. |
6 |
1 |
4003 |
brake housing, riser alum |
| 15 |
1 |
5047 |
spacer, alum |
5 |
1 |
13006 |
riser tube chrome 1.25″ dia. |
| 14 |
1 |
5046 |
pivot mount wmt, chrome |
4 |
1 |
3016/100 |
o ring, black, fits 1.25″ dia. |
| 13 |
1 |
1101-02 |
stud, sst |
3 |
6 |
1104/100 |
set screw, hex socket |
| 12 |
1 |
2049/100 |
magic gasket |
2 |
2 |
63302 |
t handle, knurled tip |
| 11 |
1 |
B427803-3 |
junior boom, pivot assy |
1 |
1 |
4007 |
pop-up head assy |
| 10 |
1 |
12034-01 |
riser tube, chrome 1.5″ dia. |
