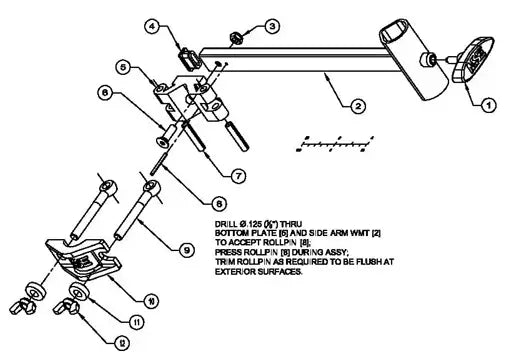

Exploded View - 429585D JUNIOR SIDE ARM
| Detail # | Quantity | Part # | Description |
| 12 | 2 | 1078/100 | Wing Nut 3/8-16 |
| 11 | 2 | 18065-20 | Spacer .88″ |
| 10 | 1 | 5002-2 | SA Top Plate |
| 9 | 2 | 25-0413 | Eye Bolt 3/8-16 |
| 8 | 1 | 1338/100 | Rollpin 1/8″ Dia |
| 7 | 2 | 1211/100 | Rollpin 5/16″ Dia |
| 6 | 1 | 25-0193 | Cap Screw Flat 5/16-28 |
| 5 | 1 | 5002-1 | SA Bottom Plate |
| 4 | 1 | 429585-3/100 | Tube Cap |
| 3 | 1 | 1307/100 | Locknut Hex 5/16-18 |
| 2 | 1 | 429585-1 | Junior Side Arm Wmt |
| 1 | 1 | 63202 | T-Handle #D |
