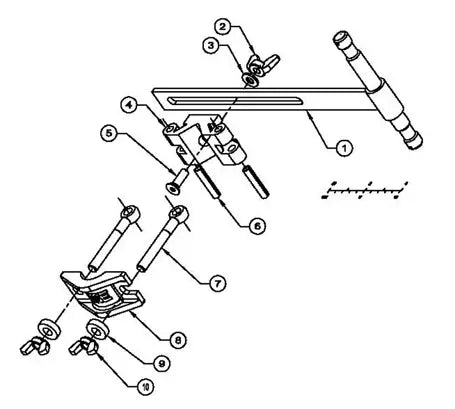

Exploded View - 429586 BABY SIDE ARM
| Detail # | Quantity | Part # | Description |
| 10 | 2 | 1078/100 | Wing Nut 3/8-16 |
| 9 | 2 | 18065/20 | Spacer .88″ |
| 8 | 1 | 5002-2 | SA Top Plate |
| 7 | 2 | 25-0413 | Eye Bolt 3/8-16 |
| 6 | 2 | 1211/100 | Rollpin 5/16″ Dia |
| 5 | 1 | 25-0193 | Cap Screw Flat 5/16-28 |
| 4 | 1 | 5002-1 | SA Bottom Plate |
| 3 | 1 | 1042/100 | Flat Washer |
| 2 | 1 | 26-0066 | Wing Nut 5/16-18 |
| 1 | 1 | 429586-2 | Baby Side Arm Wmt |
