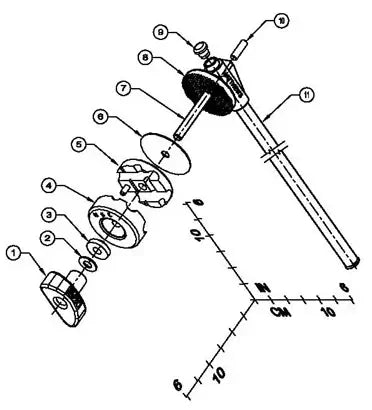

Exploded View - 680006 JUST GRIP GOBO ARM 20"
| Detail # | Quantity | Part # | Description |
| 11 | 1 | 30016 | Arm 5/8″ Dia |
| 10 | 1 | 25-0220 | Set Screw Hex Socket |
| 9 | 1 | 3022/100 | Tube Cap |
| 8 | 1 | 349575-3 | Adapter Alum |
| 7 | 1 | 1119/100 | Stud 3/8-16 |
| 6 | 1 | 54021 | Magic Gasket 2.5″ Dia |
| 5 | 1 | 349575-2 | Griphead Rear Plate |
| 4 | 1 | 349575-1 | Griphead Front Plate |
| 3 | 1 | 349575-6 | Spherical Washer |
| 2 | 1 | 1066/100 | Flat Washer |
| 1 | 1 | 349575-4 | T-Handle |
