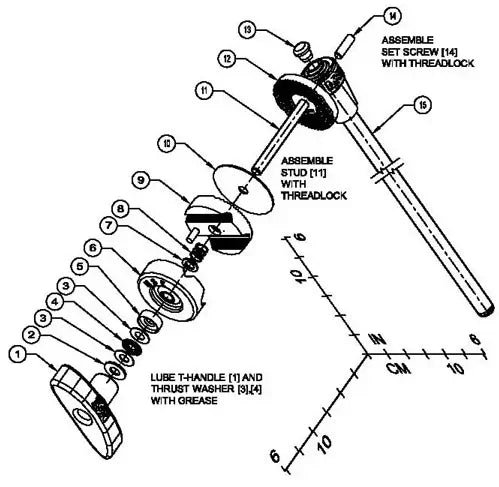

Exploded View - 680012 HAPPY GOBO ARM 20"
This Arm was made between the years of 1985 and 1995. It has since been discontinued for the new model. Call the Matthews parts department for any questions.
| Detail # | Quantity | Part # | Description |
| 15 | 1 | 30024 | Arm 5/8″ Dia |
| 14 | 1 | 25-0220 | Set Screw Hex Socket |
| 13 | 2 | 3022/100 | Tube Cap |
| 12 | 1 | 54007 | Adapter Alum |
| 11 | 1 | 1116/100 | Stud 3/8-16 |
| 10 | 1 | 54021 | Magic Gasket 2.5″ |
| 9 | 1 | 54045 | Griphead Rear Plate |
| 8 | 1 | 19-0028 | Compression Spring |
| 7 | 1 | 27-0061 | Flat Washer |
| 6 | 1 | 54044 | Griphead Front Plate |
| 5 | 1 | 18065-00 | Spherical Washer |
| 4 | 1 | 10-0045 | Thrust Bearing Cage |
| 3 | 2 | 10-0046 | Thrust Bearing Race |
| 2 | 1 | 1066/100 | Flat Washer |
| 1 | 1 | 54013 | T-Handle |
