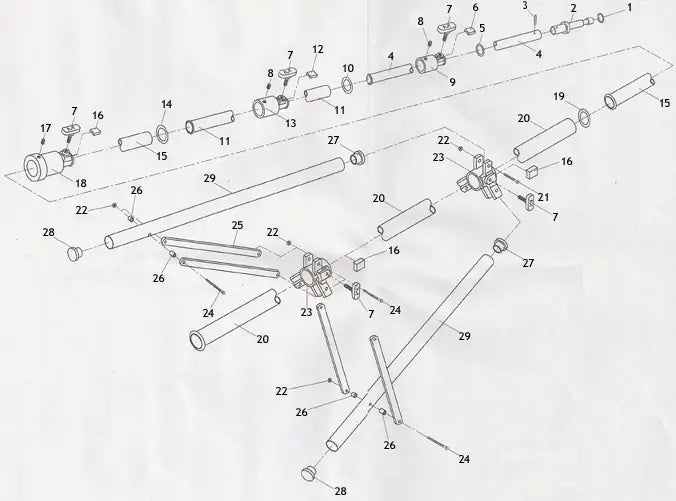

Exploded View - B387490 KIT STAND LIGHT/HEAVY TRIPLE RISER - BLACK
Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
29 | 3 | B387490-21 | Alum Tube | 14 | 1 | B387490-9 | O-Ring |
28 | 3 | B387490-20 | Leg Foot | 13 | 1 | 4000 | #54 Bonnet Casting |
27 | 3 | B387490-19 | Plastic Cap | 12 | 1 | 62101-01 | BRS Brake Middle |
26 | 6 | B387490-18 | Plastic Spacer | 11 | 1 | B387490-8 | Alum Tube |
25 | 6 | B387490-17 | Holder | 10 | 1 | B387490-7 | O-Ring |
24 | 6 | B387490-16 | Hex Head Bolt | 9 | 1 | 4001 | #43 Bonnet Casting |
23 | 2 | 4006 | Spider Casting | 8 | 6 | B387490-6 | Socket Set Screw |
22 | 9 | B387490-15 | Nylon Nut | 7 | 5 | 63301 | T-Handle |
21 | 3 | B387490-14 | Hex Head Bolt | 6 | 1 | 62100-01 | BRS Brake Small |
20 | 1 | B387490-13 | Alum Tube | 5 | 1 | B387490-5 | O-Ring |
19 | 1 | B387490-12 | O-Ring | 4 | 1 | B387490-4 | Alum Tube |
18 | 1 | 4003 | #56 Bonnet Casting | 3 | 1 | B387490-3 | Spring Pin |
17 | 3 | B387490-11 | Socket Set Screw | 2 | 1 | B387490-2 | Connector, Pin |
16 | 3 | 62102-01 | BRS Brake Large | 1 | 1 | B387490-1 | O-Ring |
15 | 1 | B387490-10 | Alum Tube |
