Exploded View - B429720 1-2FT. LIGHTWEIGHT TELESCOPING HANGER WITH PIPE CLAMP

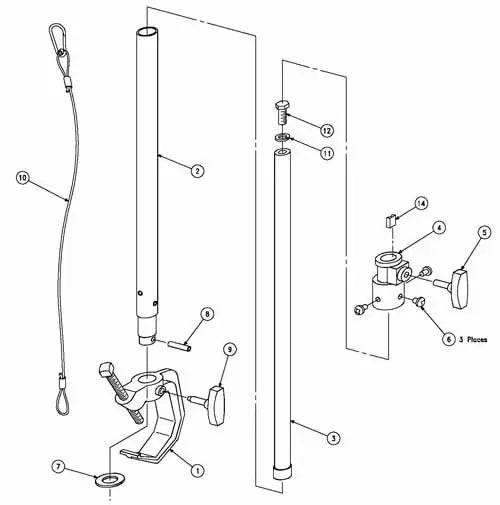

Exploded view diagram of assembly parts and components with labeled numbers, including a cable, rods, and various connectors.
Detail # Quantity Part # Description
14 1 62100-01 Brake #3, Small
12 1 25087/100 CS 3/8-16
11 1 1056/100 LWash
10 1 6348-3/100 Lanyard
9 1 63302 T-Handle
8 1 1170/100 RPin
7 1 1121/100 Washer
6 3 25-0260 Panhead
5 1 B63301 T-Handle
4 1 B4001 Bonnet Housing
3 1 B429720-11 Lower Wmt
2 1 B429720-12 Upper Assembly
1 1 429628 Baby Pipe Clamp
